4 Storey Wood Frame Apartment Building

20-40 years old

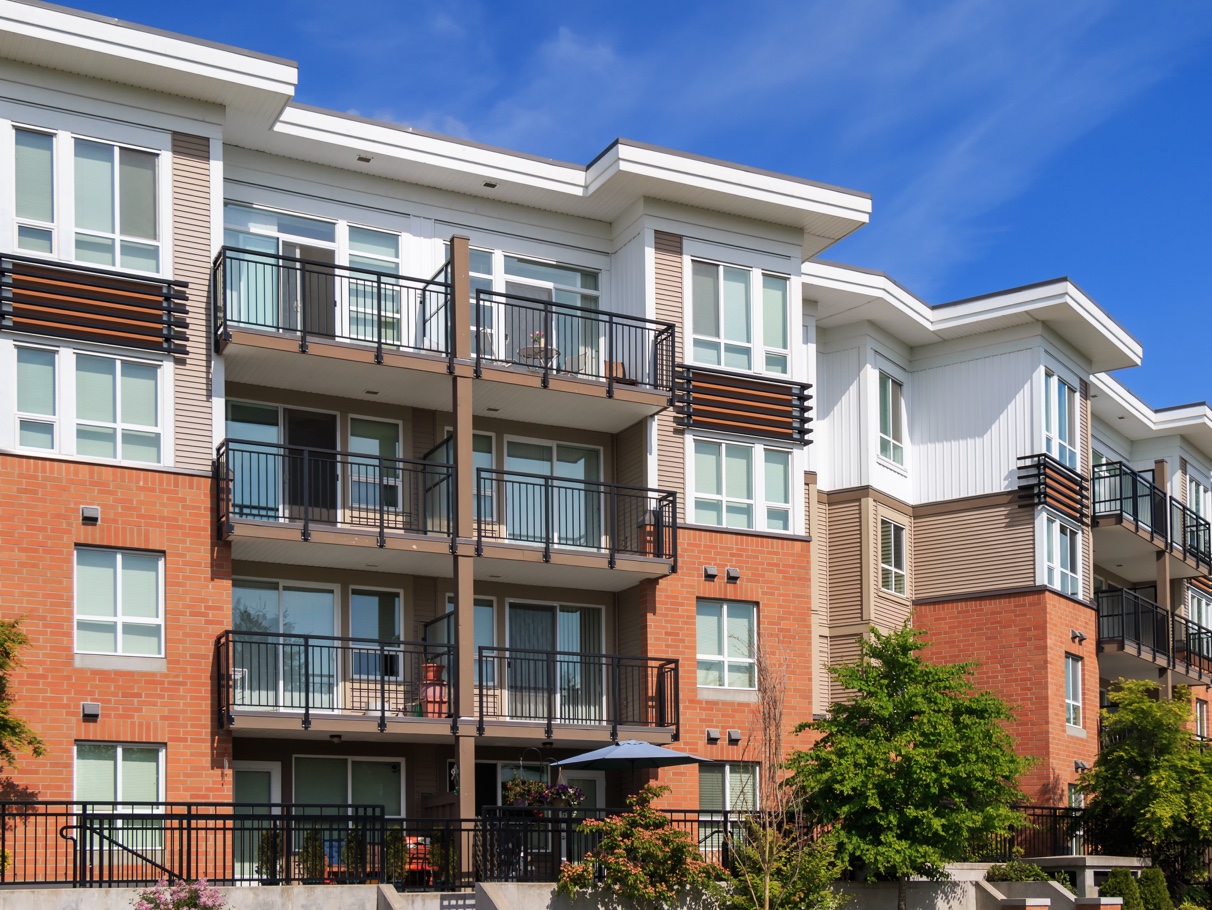

image of a 4 storey wood frame apartment building


Building Overview

  •  Four storey wood frame multi-unit residential building (common in the BC Lower Mainland)
  • Copper piping for domestic hot water. There is a re-circulation pump on the hot water system, which is controlled by an aquastat, so that the supply and return temperatures remain relatively constant (leaving water temp = 60ºC, entering water temp = 50ºC).
  • The heat flux from the domestic water piping contributes to space heating during winter months
  • Heat source: direct fired gas water heaters with a nameplate efficiency of 80%
  • Indoor design temperature: 20ºC
  • Heating season: September 15 to May 15 (8 months)
  • Gas cost: $9.486/GJ • Service life: 20 years
  • Building conditioned floor space: approx. 45,000 square feet (4,200 square metres)

Modeled Scenarios:

1. No insulation on hot water pipes

2. 25mm thick insulation on hot water pipes

Results:

Over the course of one year the following savings would result from the use of insulation.

ANNUAL ENERGY AND GREENHOUSE GAS SAVINGS
ResourceAnnual Reduction
Energy Saved (kWh)45,802
GHG Emissions C02e (tonnes)8.4
The following table summarizes the impact on overall building energy consumption.
Total Energy Consumption726,600 kWh
Energy savings due to pipe insulation45,802 kWh or 6.3% of total consumption



The estimated payback for the investment in insulation during construction would be less than 4.0 years based solely on the energy costs.
